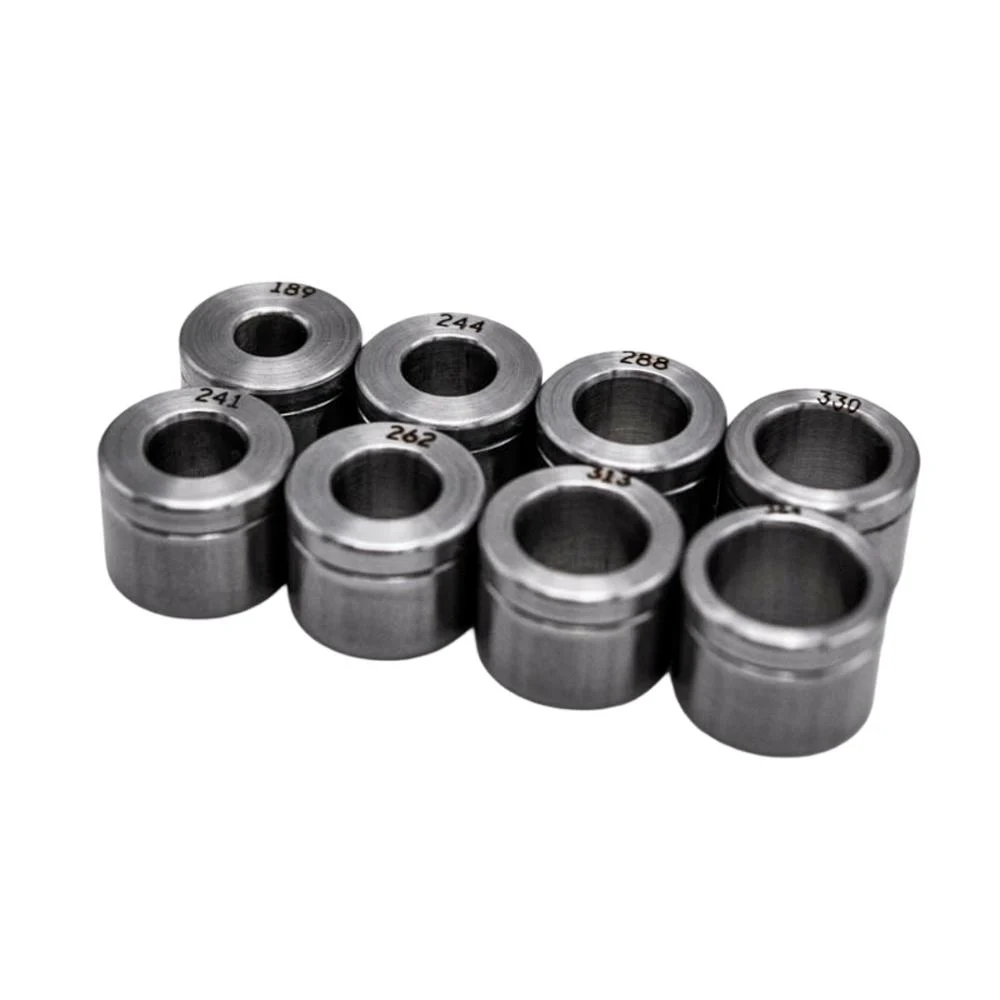

The L.E. Wilson Neck Sizing Die Bushing .289 is a steel neck sizer intended to fit into Wilson Neck Dies and size the case neck to grip the bullet consistently. It is a focused tool for precision reloading where repeatable neck tension matters. Selection of the correct bushing relies on direct measurement of a loaded round or calculation from neck wall thickness; examples below show both approaches.
To calculate bushing size, measure the diameter of a loaded round at the point where the bullet sits in the neck (example: .268). Subtract .002 to .003 from that measurement to determine the recommended bushing size (example: .268 – .002 = .266 bushing).
Alternatively, measure the case neck wall thickness, multiply by two, add the bullet diameter, then subtract .002 to .003. For example: .012 wall thickness × 2 = .024. Bullet diameter .243 + .024 = .267. Subtract .003 to arrive at a .264 bushing.
Key Specifications
- Manufacturer: L.E. Wilson.
- Model Name: Neck Sizing Die Bushing .289.
- Material: Steel (as indicated in the product name).
- Intended Fit: Fits in the Neck Die to size case necks for consistent bullet grip.
- Diameter: .289 inches (as listed in product attributes).
- Item Weight: 0.02.
- Shipping Weight: 0.02.
Simple and effective, the L.E. Wilson .289 steel neck bushing provides a direct way to dial in consistent neck tension using measured data. It integrates with Wilson Neck Dies to support precise, repeatable reloading workflows for handloaders focused on consistency and accuracy.
