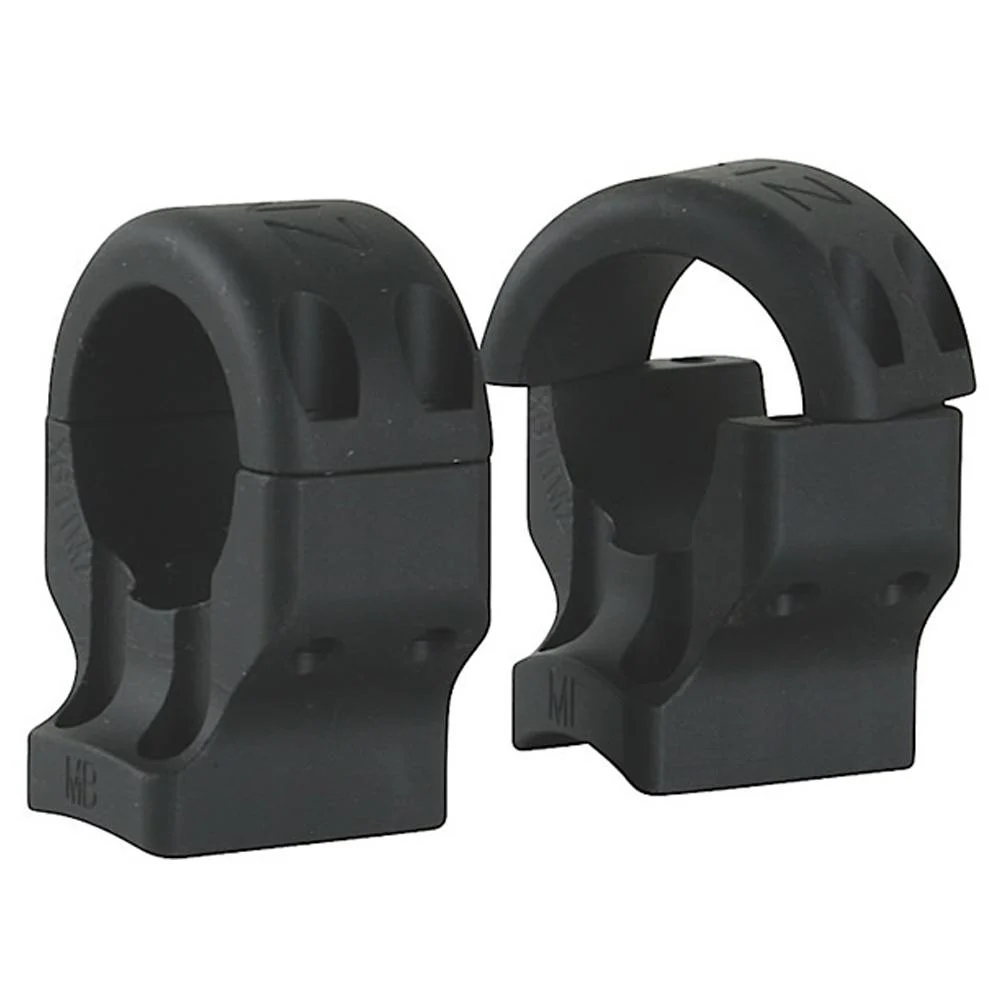

The DNZ Hunt Masters two-piece scope mount is a precision-machined mounting solution made to fit Browning X-Bolt receivers. Each ring and base is machined from billet aluminum to provide a lightweight alternative to steel while maintaining rigidity and alignment. The design provides internal ring and base geometry for extra eye relief adjustment and reduces stress on the optic during installation. This model is finished in black and configured for 1 inch scope tubes in a medium height with a four-screw ring option.
Key Specifications
- Compatible with Browning X-Bolt receivers and designed to fit long and short actions.
- Tube compatibility is 1 inch scope tubes as indicated in the product name.
- Mount style is a 2-piece configuration with distinct front and rear mounts.
- Ring configuration includes a 4-screw per ring option (tactical rings); standard rings have 2 screws per ring per manufacturer text.
- Ring width measurements are listed as .63? for standard rings and .80? for tactical rings in the provided description.
- Mount heights from top of receiver to scope centerline are shown as .94? (low), 1.06? (medium), and 1.19? (high) in the source text.
- Base screw and ring screw specifications are indicated as 6-48 x 1/4? (base) and 6-40 x 5/8? (ring) with a 7/64 Allen wrench noted.
- Hole spacing dimension on front and rear mounts is given as .70? in the source description.
- Construction is described as machined from billet aluminum to reduce weight and resist temperature extremes better than steel.
- Origin is listed as Made in the USA in the manufacturer description.
The Hunt Masters mount provides a solid, lightweight platform for mounting optics on Browning X-Bolt rifles while offering internal clearance for additional eye relief and a medium height that suits many scopes used in field and range work. Its billet aluminum construction aims to balance strength and reduced weight, and the multi-screw ring option increases point-of-attachment security. For shooters who value precise fit and alignment, this DNZ mount is engineered to hold sights steady through regular use without unnecessary complexity.
