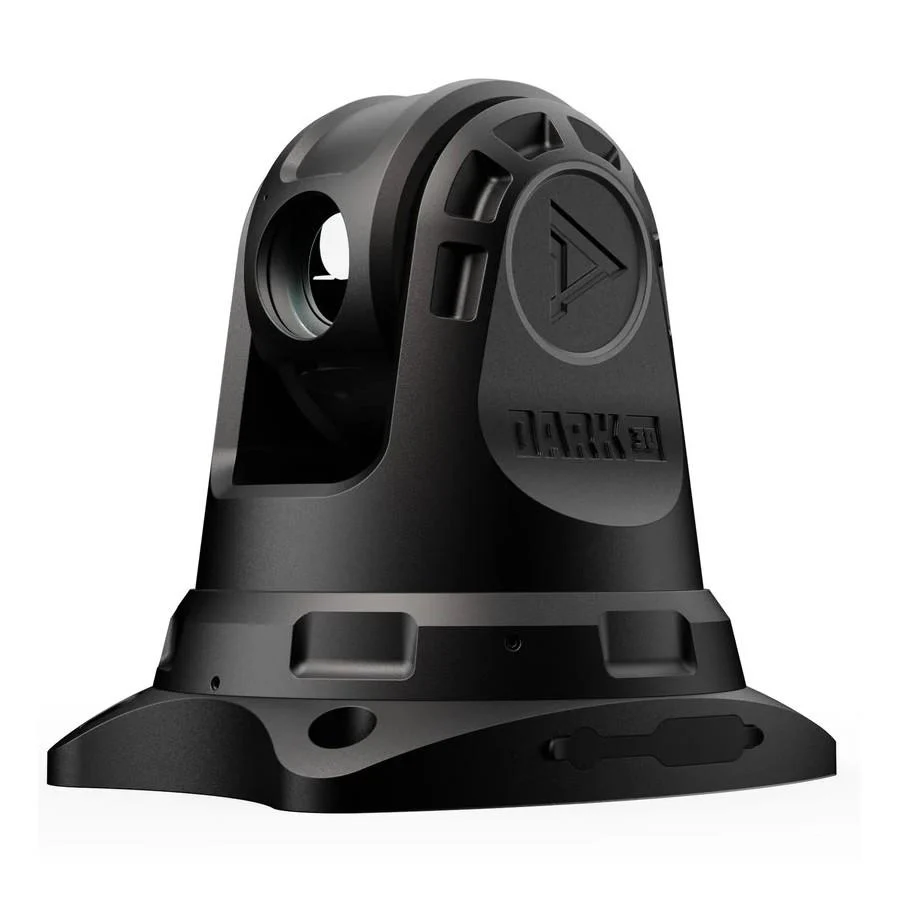

The Dark30 Defiance LS 384 PTZ is a rugged vehicle-mounted thermal camera designed for trucks, UTVs and off-road platforms. It provides remote PTZ control and low-latency in-cabin viewing so operators can monitor livestock, track predators, or survey perimeter areas from inside the vehicle. The system includes app integration, a wired 10.1-inch HDMI screen, and multiple mounting options for temporary or permanent installation. Built for field use, the housing is water-resistant and the unit runs from the vehicle’s 12V DC power supply.
Key Specifications
- The pan system provides continuous 360° rotation for wide-area scanning.
- The unit supports a 1–8x digital zoom for adjustable image magnification.
- The thermal detector has a NETD <40 mK for improved contrast in low-temperature differences.
- The camera is rated IP66 for water-resistant operation in field conditions.
- The system is powered by the vehicle 12V DC power port for direct installation.
- The kit includes a 10.1-inch low-latency HDMI in-cabin display for real-time observation.
- Controls are available via a handheld remote and a Dark 30 mobile app for iOS and Android.
- The tilt mechanism provides positions from straight down to 45° above horizontal.
- Includes multiple mounting options: bolts, suction cups, and magnetic feet for flexible installation.
- Onboard functions include Sleep Mode and a Return-to-Home position for easy reset of the camera.
Purpose-built for vehicle use, the Defiance LS 384 PTZ delivers practical, field-ready thermal imaging with versatile mounting and user-friendly controls. Its continuous PTZ motion, app and remote options, and included in-cabin display make it a turnkey solution for ranchers, land managers, and patrol teams who need dependable thermal awareness while remaining inside the vehicle.
