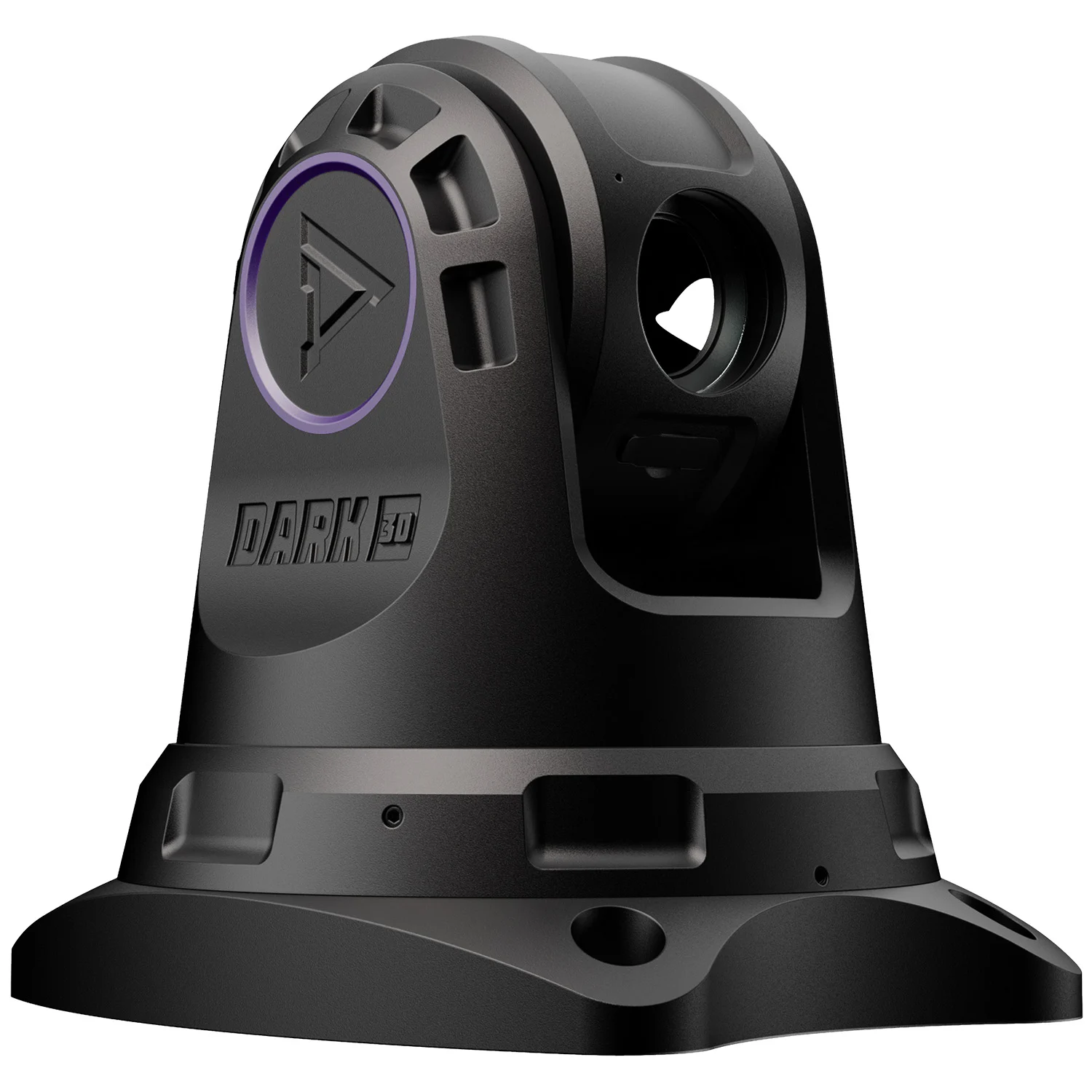

The Dark 30 Defiance 640 PTZ is a vehicle-mounted thermal camera designed for mobile scouting, wildlife observation, and low-light situational awareness. It pairs a 640×480 thermal sensor with 17 micron pixels and a 60 Hz frame rate for detailed, responsive imaging. The unit features a 32 mm Germanium lens and full PTZ capability for continuous 360° panning and extensive tilt range. Designed for field use, it supports wired display and app control and is built to a weather-resistant IP66 specification.
Key Specifications
- The display measures 10.10″ LCD and supports a low-latency wired connection for vehicle use.
- The thermal sensor provides 640×480 resolution for detailed thermal imaging.
- The detector uses 17 micron pixels to improve thermal sensitivity.
- The device runs at a 60 Hz frame rate for smooth imaging of moving subjects.
- The optics include a 32 mm Germanium lens with a 30 mm focal length and an F/ of 1.
- Digital zoom ranges from 1–8x for closer inspection of distant heat sources.
- The field of view is 20° horizontal, 15° vertical, and 25° diagonal.
- Detection capability reaches up to 1250 yards under ideal conditions.
- PTZ functionality provides infinite 360° panning and continuous tilt from straight down to 45° above horizontal.
- The unit runs on 12V DC power and is rated IP66 for weather resistance.
With a focus on reliable, mobile thermal observation, the Defiance 640 PTZ combines long-range detection, responsive 60 Hz imaging, and robust mounting options to support vehicle-based scouting and night-time monitoring tasks. Its wired display and mobile app control, along with multiple mounting hardware options, make it a practical tool for users who need consistent, weather-resistant thermal performance in the field.
